RGV-160 Trapped Round Floor Gully

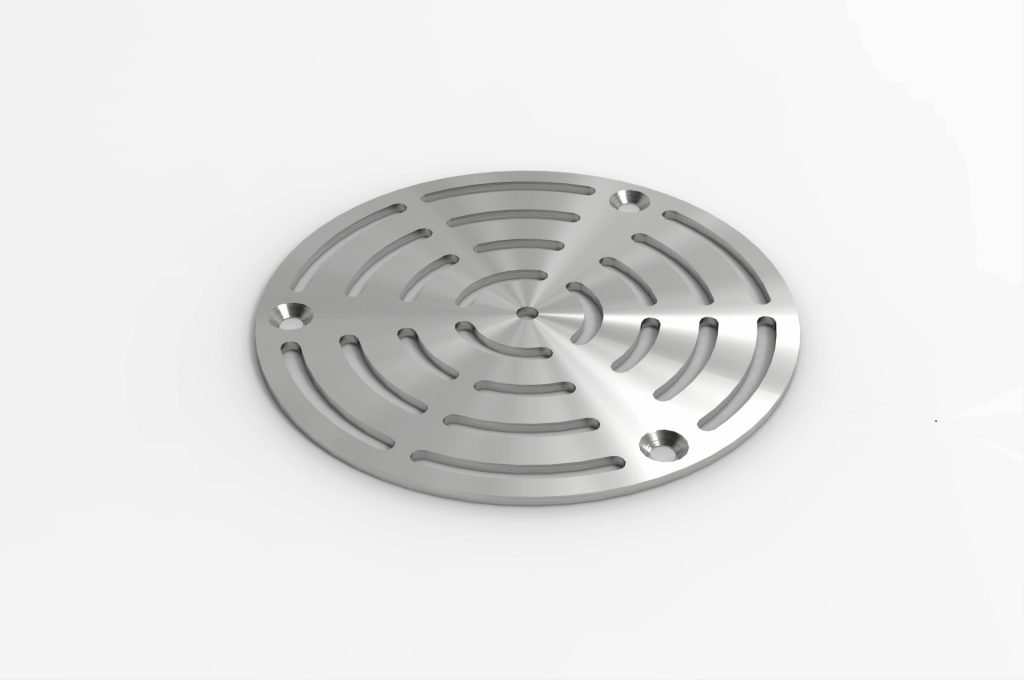

  • RGV Grate

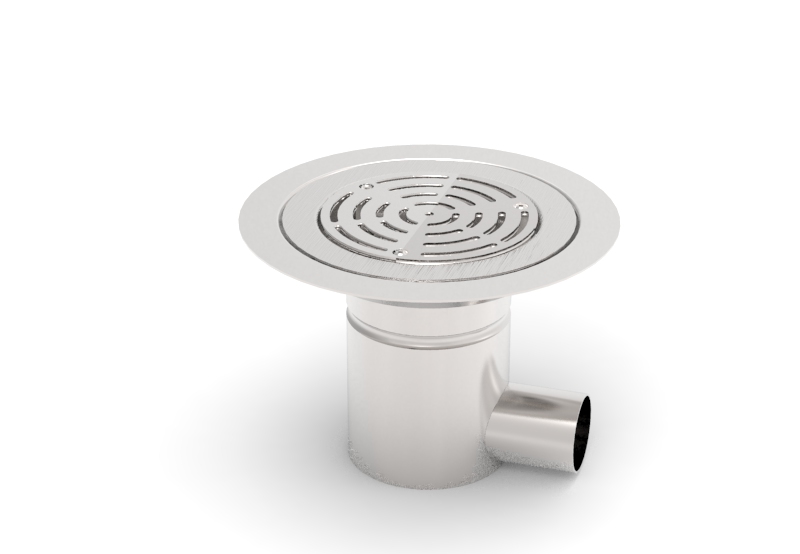

  • RGV-160 – with 54mm Horizontal Outlet

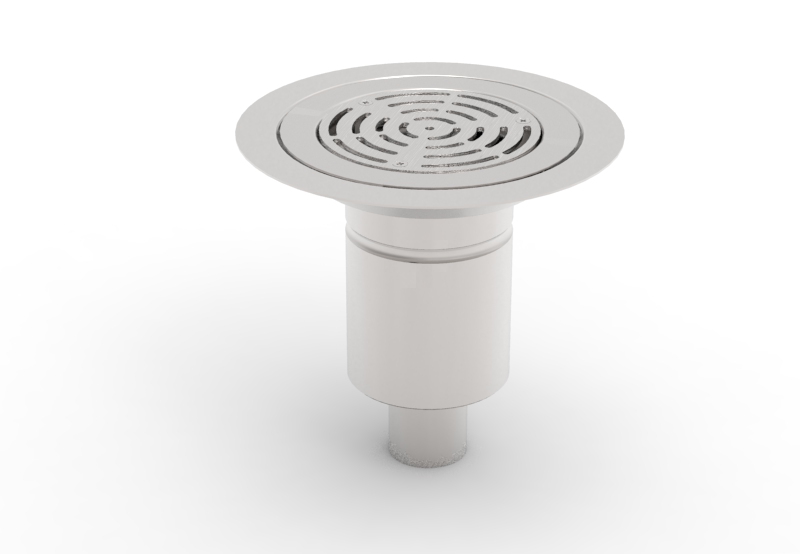

  • RGV-160 – with 54mm Vertical Outlet

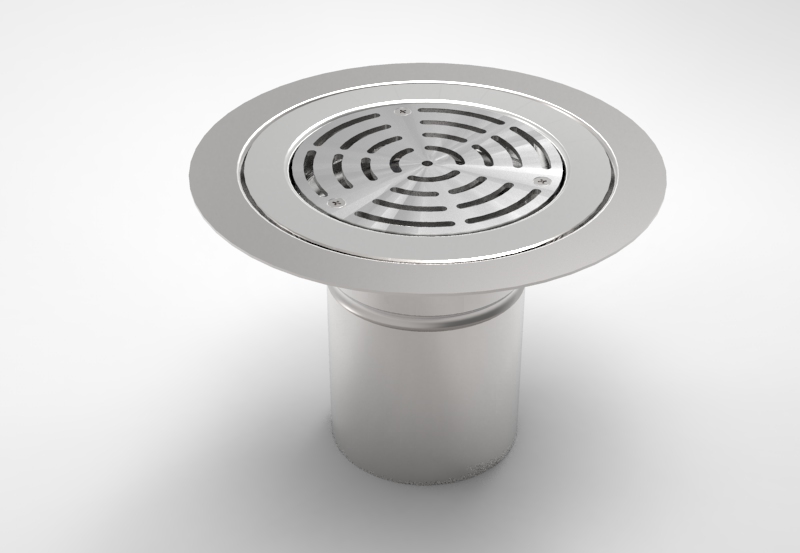

  • RGV-160 – with Flange & 110mm Vertical Outlet

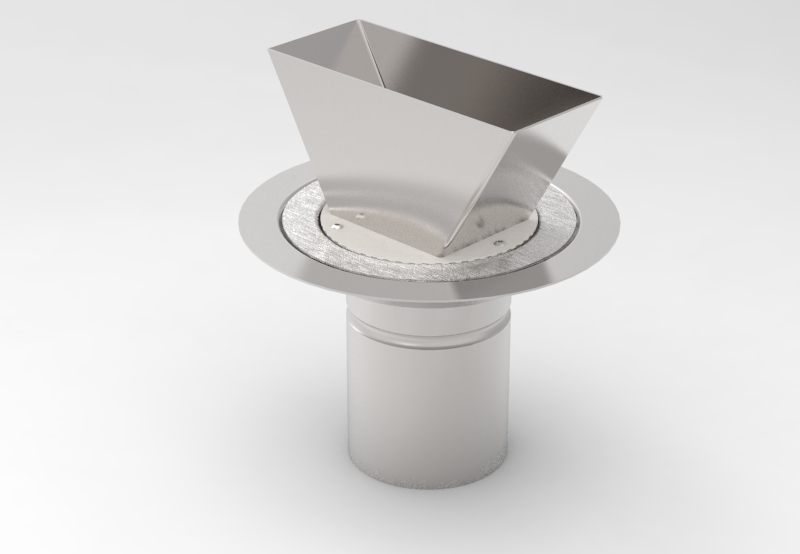

  • RGV-160 – with Multi-Pipe Inlet
  • RGV-160 – with Single-Pipe Inlet

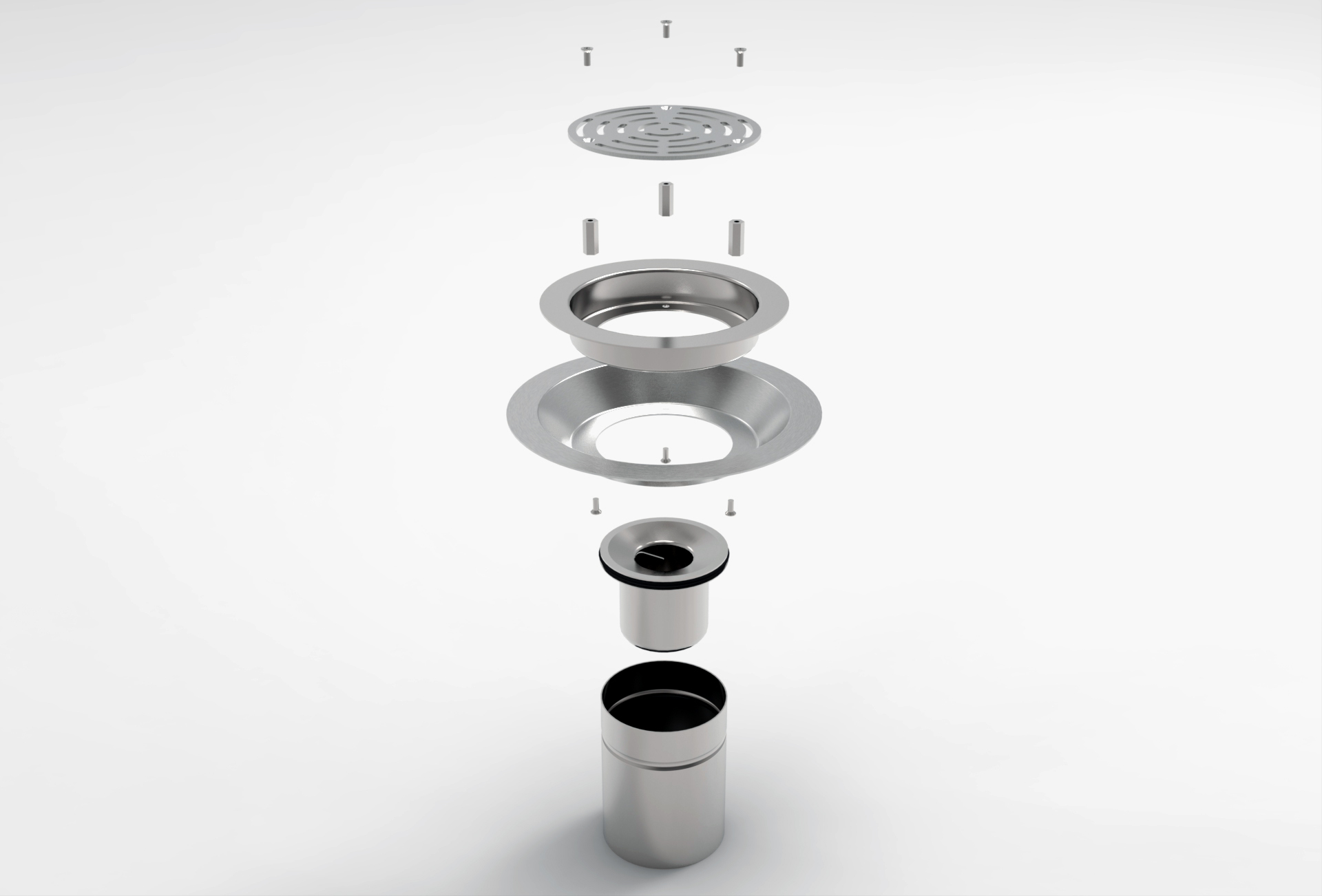

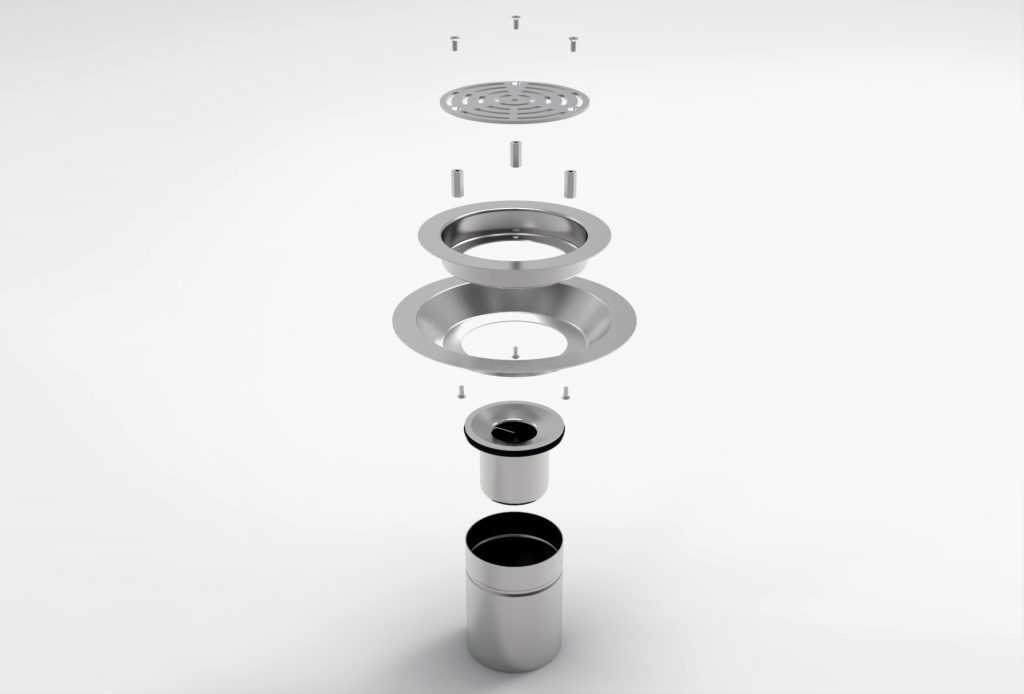

  • RGV-160 Gully – Exploded

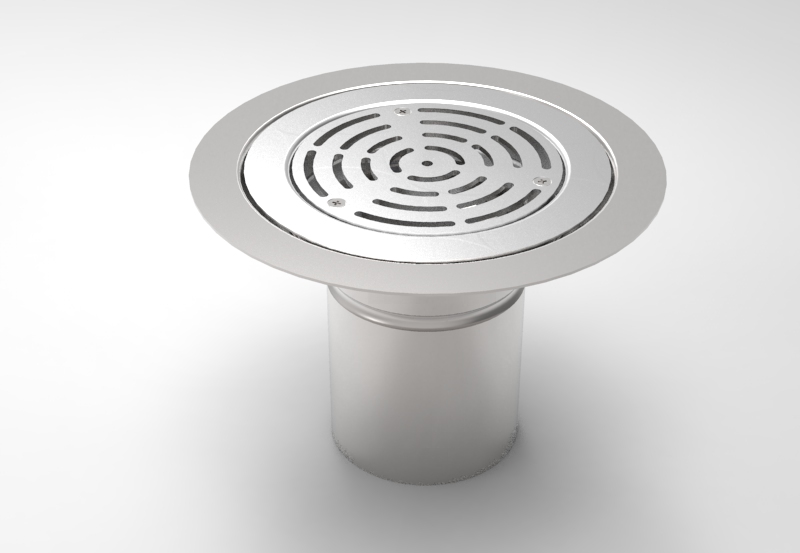

  • Standard RGV-160

All stainless steel trapped round floor gully suitable for vinyl floors. Ideal for kitchens or showers.

  • Vinyl clamp (192mm diameter) with secured grate (142mm diameter).
  • Vertical 110mm diameter spigot.
  • Removable trap (up to 1.7 litres per sec).
  • Removable sediment basket.

Other Configurations

  • Horizontal or vertical outlet with a 110mm
    or 54mm diameter outlet.
  • Alternative removable tops include single and multiple pipe inlets.
  • Blanking plates also available.
Vertical outlet 54mm diameter
Vertical outlet 54mm diameter
Horizontal outlet 54mm diameter
Horizontal outlet 54mm diameter
Single pipe inlet 100mm diameter
Single pipe inlet 100mm diameter
Multiple pipe inlet 214mm wide opening
Multiple pipe inlet 214mm wide opening

Order Information

Type RGV-160 round gully. For a horizontal outlet (+HO) and specify diameter. For single pipe inlet (+SP) or multiple pipe (+MP) Blanking plates (+BP). Please specify either type 304 or 316 stainless steel.
